Layer

Layer

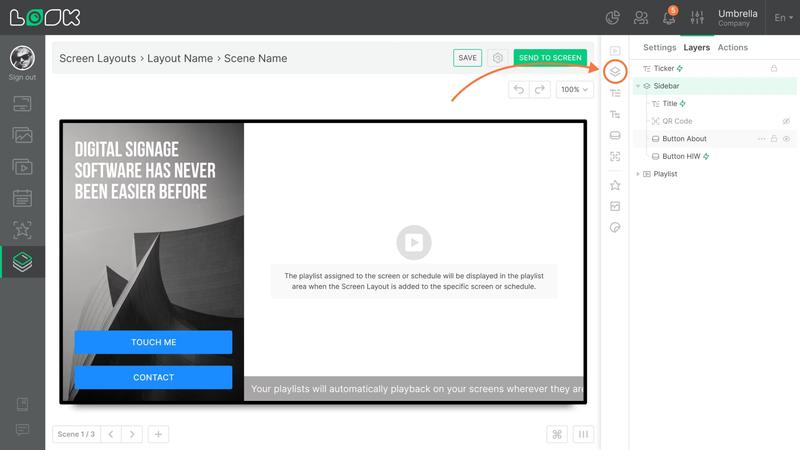

Layer is a functional area of the layout where any content items, as well as other layers and widgets can be added.

Adding Layer

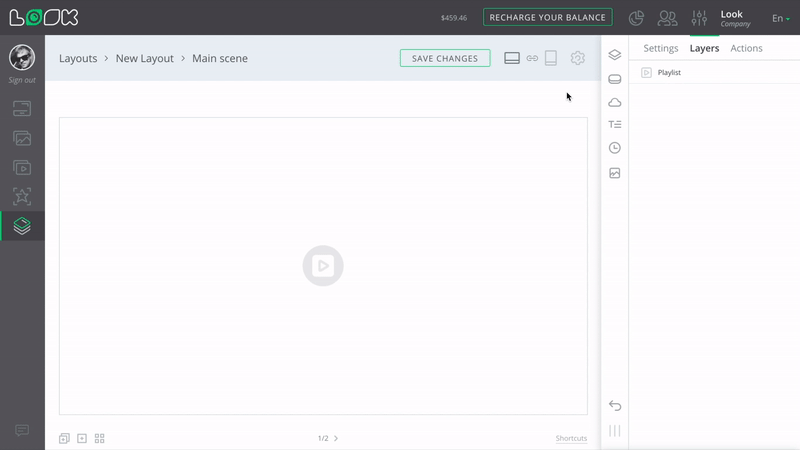

To add a new layer, click on the Layer icon in the toolbar (or use the [L] hotkey).

Adding Layer

Basic Layer Settings

1. To go to the settings, select a layer from the workspace or in the list of layers and click on the Settings tab.

To quickly move to the settings of any layer or widget, double-click on a required object.

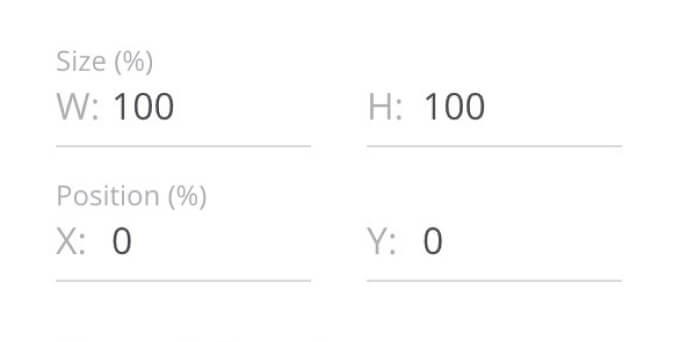

2. The first group of settings is responsible for the size and positioning of the layer area. All values are specified in percentage.

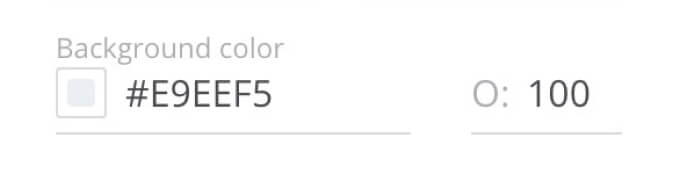

3. Background color and transparency parameters can be configured in respect of a layer.

Background color

4. If the Mute slider is on, content of the layer will be played without sound.

Adding Content to Layer

Adding Content to Layer

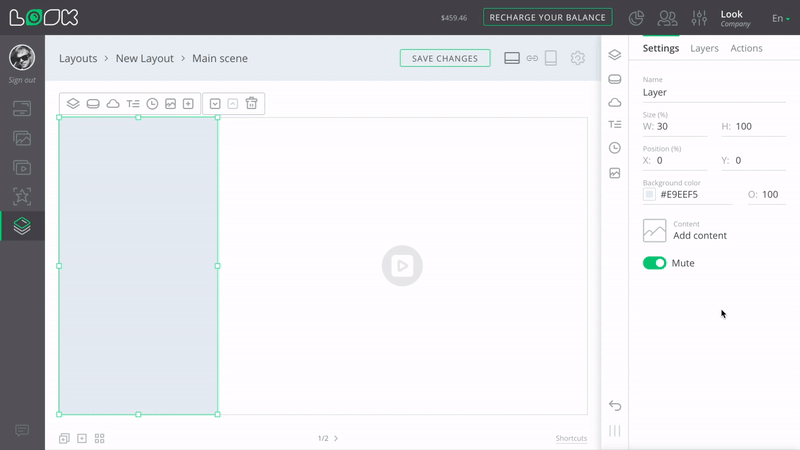

  1. To add content to a layer, click the **Add content** button in the layer settings panel.
  2. Select a required content item from the content list.
  3. If necessary, set the image playback mode (available only for image)
  4. To remove content from the layer, click on the cross icon opposite the name of the added content item

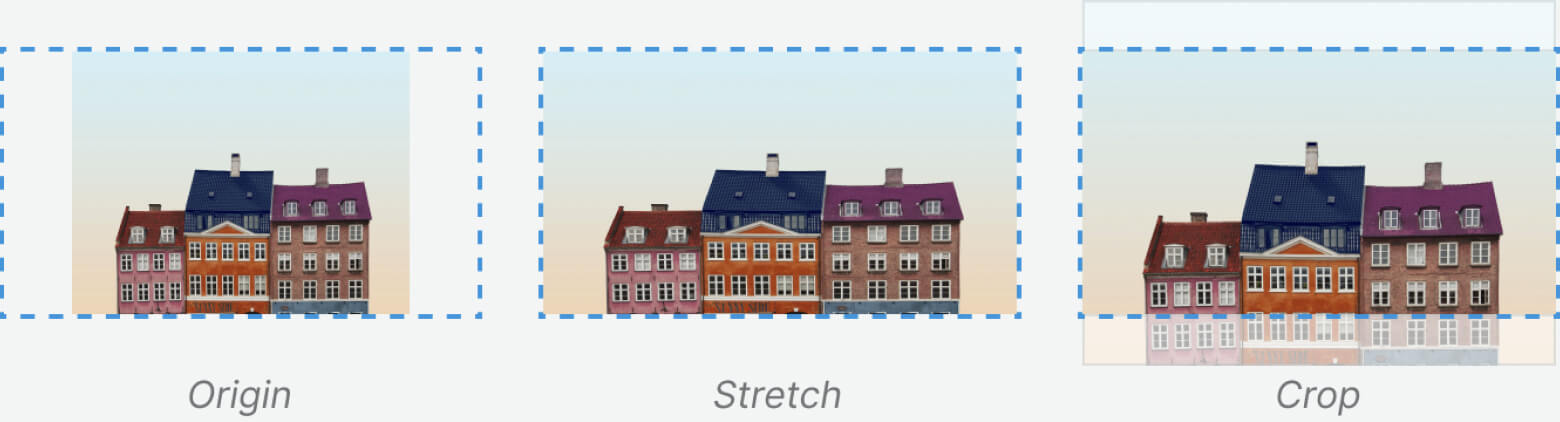

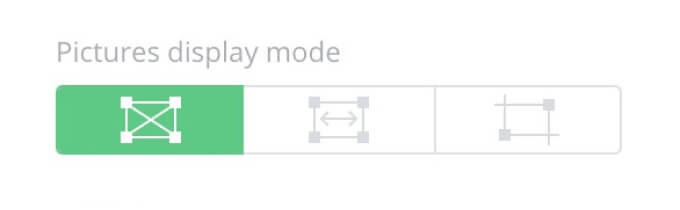

Pictures display mode - a setting responsible for the method of displaying images.

Pictures display mode
Pictures display mode 2

Adding Layers and Widgets to Layer

Other layers and widgets can be added to a layer. Items added to the layer will change their size and position values depending on the size and position of the parent layer.

Adding Layers and Widgets to Layer

To add an item to a layer, select a layer in the workspace and click on the icon of the added item in the toolbar above the layer, or in the main toolbar on the right.
